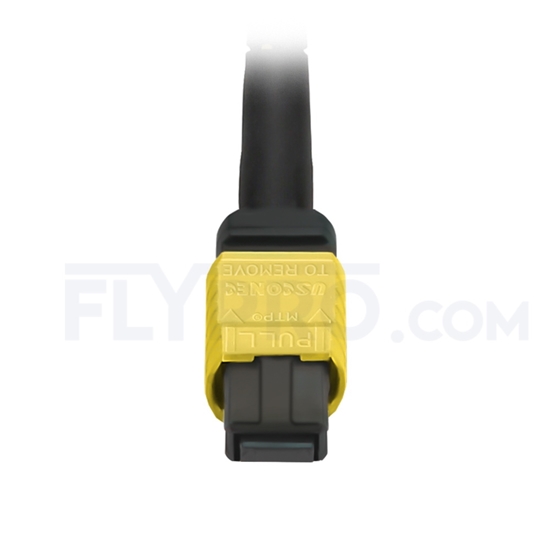

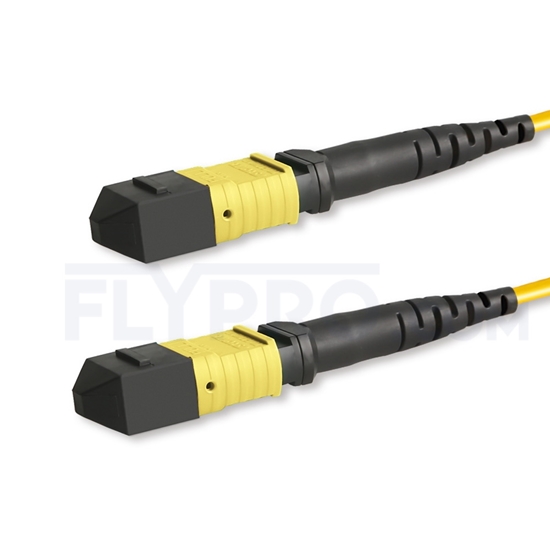

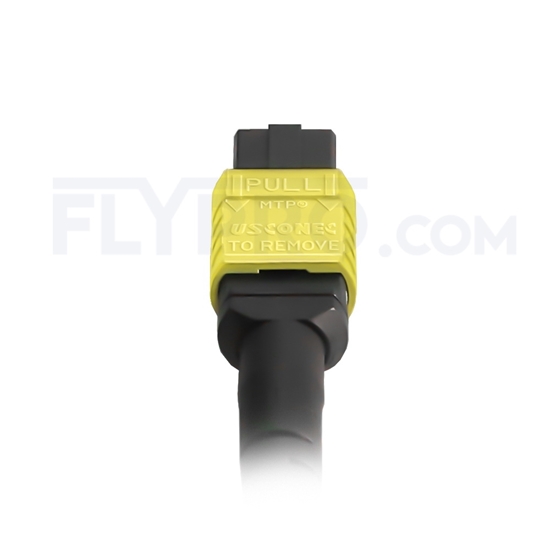

5m (16ft) MTP Trunk Cable Female 12 Fibers Type B LSZH OS2 9/125 Single Mode Elite, Yellow

Name: 5m (16ft) MTP Trunk Cable Female 12 Fibers Type B LSZH OS2 9/125 Single Mode Elite, Yellow
Brand: FLYPRO
SKU: 439866
Price: 56.99 USD
Availability: InStock
Rating: 0.0 (0 reviews)

PN: MT12FOSFBL05

SKU: 439866

#6170

US$56,99

30 Tage kostenlose Rückgabe

Lebenslanger technischer Support

Bezahlverfahren

Kontaktiere uns

Length:: 1m; 2m; 3m; 5m; 10m; 15m; Mehr +; Weniger -

US$56,99

Verfügbarkeit: Auf Lager

Überblick

MTP Female to MTP Female OS2 9/125 Single Mode Trunk Cable

MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP connectors and Corning SMF-28 ultra optical fiber, it is optimized for 40G QSFP+ PLR4, 100G QSFP28 PSM4, 400G OSFP DR4/XDR4 and 400G QSFP-DD DR4/XDR4 optics direct connection and high-density data center applications.

Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

Product Specifications

Connector A	MTP Female (US Conec)	Connector B	MTP Female (US Conec)
Fiber Mode	OS2 9/125μm SM	Wavelength	1310/1550nm
Polish Type	APC to APC	Minimum Bend Radius	10mm
Insertion Loss	0.35dB Max (0.15dB Typ.）	Return Loss	≥60dB
Attenuation at 1310nm	≤0.32 dB/km	Attenuation at 1550nm	≤0.18 dB/km
Jacket OD	3.0mm	Cable Jacket	LSZH
Installation Tensile Load	100 N	Long-Term Tensile Load	50 N
Storage Temperature	-40°C to +85°C	Operating Temperature	-10°C to +70°C

Quality Assurance

Excellent quality is the foundation of FLYPRO' s survival and development. Our operation team are experts with many years'experience in optical communication industry.Our manufacturers are first-class manufacturers in the industry.Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products,including our strict qualification of manufacturers,quality control process and production technology,and compliance with certification and safety standards.At present,our products meet the industry standards and mainstream quality certification,such as ISO 9001,CE,RoHS,FCC,etc.

Our Adavantages

SHort Lead time

Fast Delivery

Professional Service

Technical Support

Worry-Free Guarantee

Shopping Satisfactorily

Premium Quality

High Stability

Rigorous Industrial Product Testing

Communication and networks products require high stability and reliability.FLYPRO adopts leading product design,first-class raw materials and production technology to ensure the first-class quality of our products,so that your project can be used,installed stably and reliably
