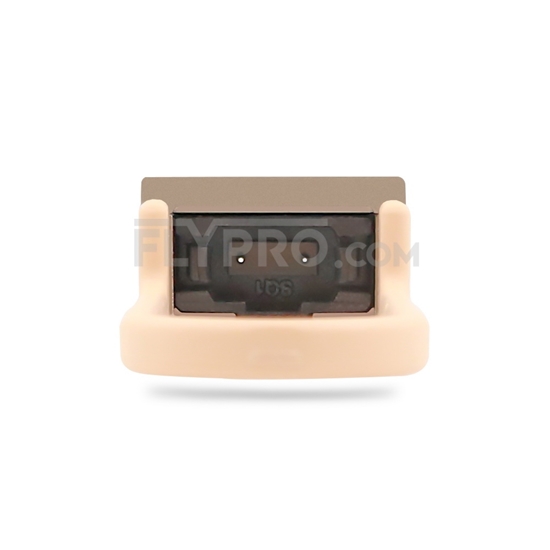

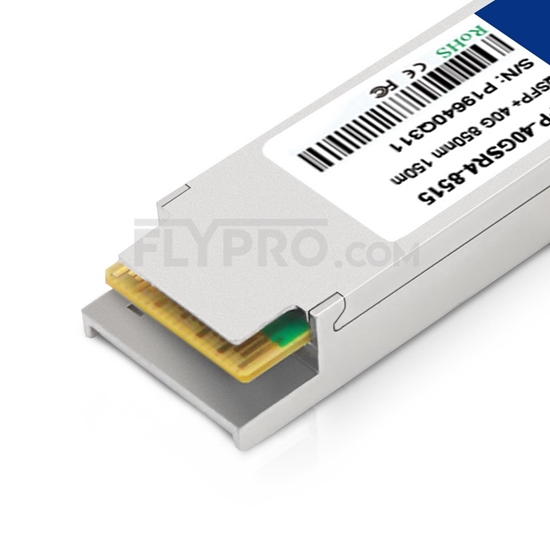

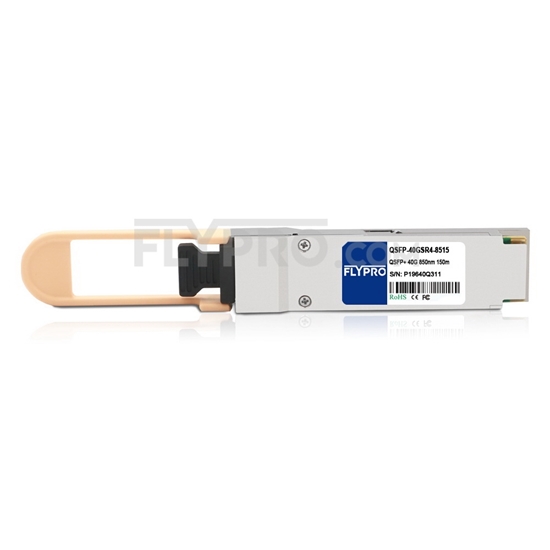

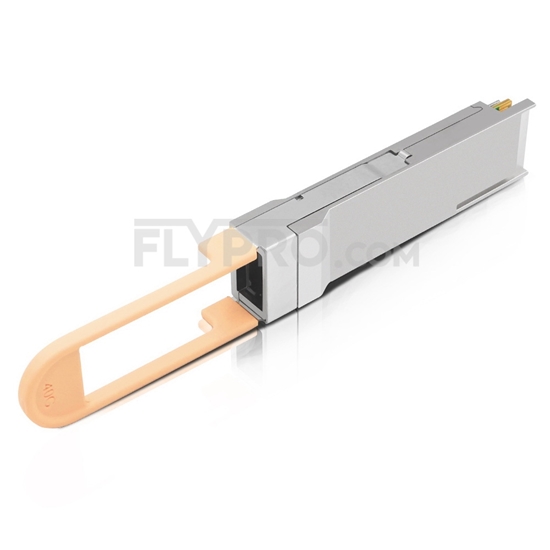

Avago AFBR-79EIPZ Compatible 40GBASE-iSR4/4x10GBASE-SR QSFP+ 850nm 150m DOM Transceiver Module

Name: Avago AFBR-79EIPZ Compatible 40GBASE-iSR4/4x10GBASE-SR QSFP+ 850nm 150m DOM Transceiver Module
Brand: FLYPRO
SKU: 366783
Price: 28.99 USD
Availability: InStock
Rating: 0.0 (0 reviews)

PN: QSFP-40GSR4-8515

SKU: 366783

#10131

US$28.99

30 Days Free Refund & Return

Lifetime Technical Support

Payment method

Inquire with us

Compatible:: Avago; More +; Less -

Transceiver Type:: AFBR-79EQPZ; QSFP-LR4-40G; QSFP-PLR4-40G; AFBR-79EEPZ; QSFP-PIR4-40G; QSFP-LX4-40G; QSFP-40GE-IR4; QSFP-40G-ER4; AFBR-79EQDZ; AFBR-79E3PZ; AFBR-79EADZ; AFBR-79EIPZ; AFBR-79EIDZ; AFBR-79EAPZ; More +; Less -

US$28.99

Availability: In stock

Overview

Avago AFBR-79EIPZ Compatible 40GBASE-iSR4/4x10GBASE-SR QSFP+ Transceiver Module (MMF, 850nm, 150m, MTP/MPO, DOM)

Product Details

Avago Compatible	AFBR-79EIPZ	Vendor Name	FLYPRO
Form Type	QSFP+	Max Data Rate	40Gbps
Wavelength	850nm	Max Cable Distance*	150m @ OM4 MMF**
Connector	MTP/MPO	Transimitter Type	VCSEL 850nm
Cable Type	MMF	DDM/DOM Support	Yes
CDR	Supported	Protocols	40G Ethernet, Infiniband QDR, SATA/SAS3, IEEE 802.3ba, MSA Compliant
TX Power	-7.6~2.4dBm	Receiver Sensitivity	<-12dBm
Commercial Temperature Range	0 to 70°C (32 to 158°F)

Please Note:
* Minimum cabling distance is 0.5 meters for -SR4 and -CSR4 modules.
**Considered an engineered link with maximum 1 decibel loss budget.
