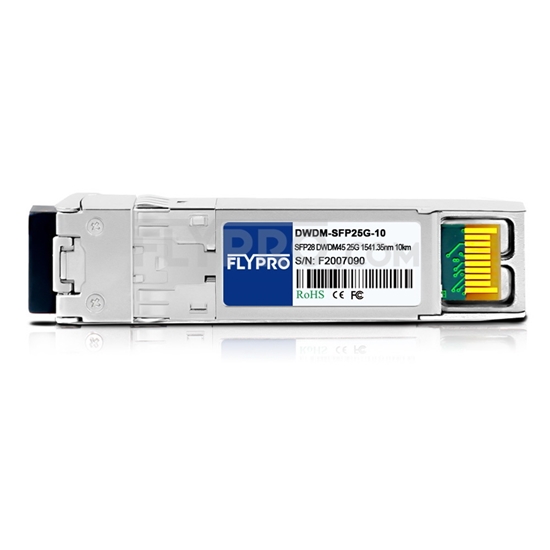

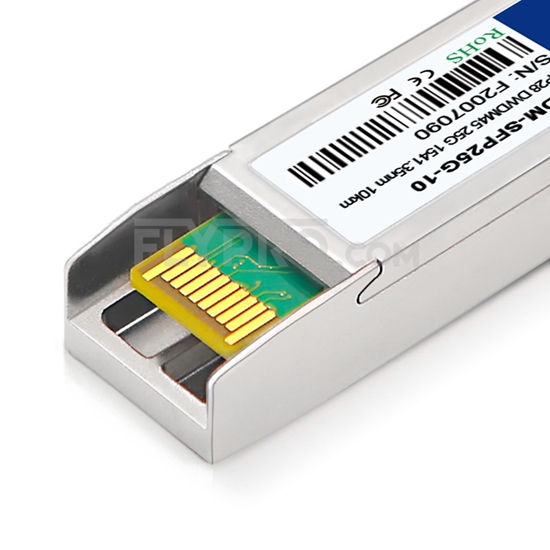

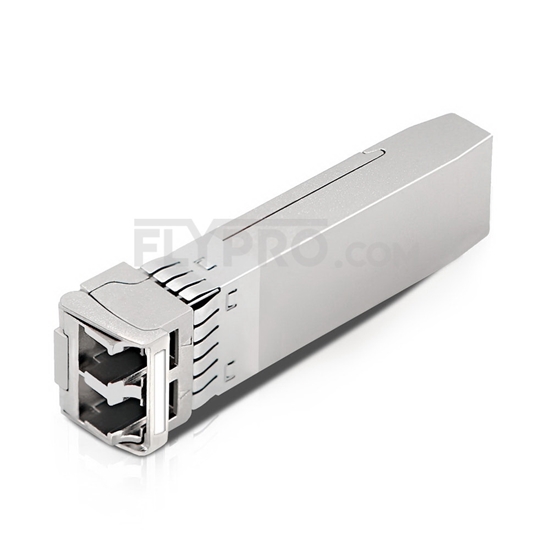

Arista Networks C45 SFP28-25G-DL-41.35 Compatible 25G DWDM SFP28 100GHz 1541.35nm 10km DOM Optical Transceiver Module

Name: Arista Networks C45 SFP28-25G-DL-41.35 Compatible 25G DWDM SFP28 100GHz 1541.35nm 10km DOM Optical Transceiver Module
Brand: FLYPRO
SKU: 871186
Price: 499.99 USD
Availability: InStock
Rating: 0.0 (0 reviews)

PN: DWDM-SFP25G-10

SKU: 871186

#13352

US$499.99

30 Days Free Refund & Return

Lifetime Technical Support

Payment method

Inquire with us

US$499.99

Availability: In stock

Overview

Arista Networks SFP28-25G-DL-41.35 Compatible 25G DWDM SFP28 100GHz Optical Transceiver Module for Data Center and Telecom (SMF, 1541.35nm, 10km, LC, DOM)

Arista Networks Compatible	SFP28-25G-DL-41.35	Vendor Name	FLYPRO
Form Factor	SFP28	Max Data Rate	25.78Gbps
Wavelength	1541.35nm	Max Cable Distance	10km
Connector	LC duplex	Media	SMF
Transmitter Type	EML DWDM	Receiver Type	PIN
DDM/DOM	Supported	Commercial Temperature Range	0 to 70°C (32 to 158°F)
TX Power	-2~6dBm	Receiver Sensitivity	<-12dBm
Power Consumption	2W	Extinction Ratio	4dB
Modulation Format	NRZ	CDR	TX and RX
Transmit and Dispersion Penalty	3.5dB	Powerbudget	10dB
Packaging Technology	BOX Packaging	FEC Function*	Not Supported
Protocols	MSA Compliant, CPRI, eCPRI	Application	25GBASE Ethernet, Data Center, Telecom

Please Note:
* FEC in host is required to be turned on to increase the reliability of transmission.
