Arista Networks QSFP-100G-LR4-D20 Compatible 100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Dual Rate 1310nm 20km Optical Transceiver Module

PN: QSFP28-100G-LR4
|
SKU: 884768
|
#13558
US$703.99
30 Days Free Refund & Return
Lifetime Technical Support
Payment method
Inquire with us
US$703.99
Availability: In stock
Overview

Arista Networks QSFP-100G-LR4-D20 Compatible 100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Dual Rate Optical Transceiver Module for Telecom (SMF, 1310nm, 20km, LC, DOM)

Arista Networks CompatibleQSFP-100G-LR4-D20Vendor NameFLYPRO
Form FactorQSFP28Data RateDual Rate 103.1Gbps and 112Gbps
Wavelength1310nm*Max Cable Distance20km@SMF

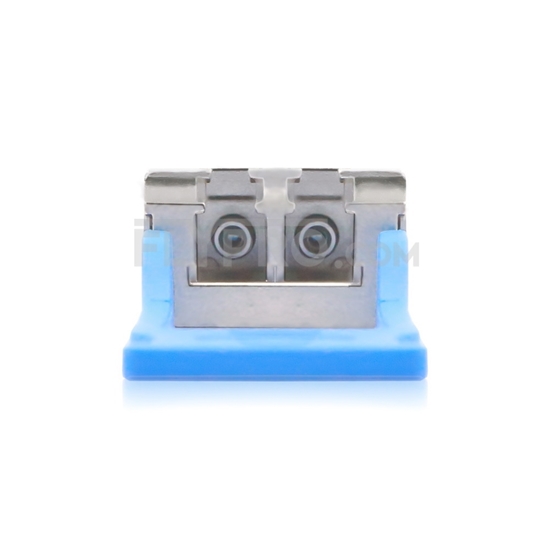

ConnectorLC duplexMediaSMF
Transmitter Type4 x LAN WDM DML TOSAReceiver Type4 x PIN ROSA
DDM/DOMSupportedCommercial Temperature Range0 to 70°C (32 to 158°F)
TX Power(100G)-1.0~4.5dBmReceiver Sensitivity(100G)<-9.5dBm
TX Power(112G)0~4dBmReceiver Sensitivity(112G)<-9.0dBm
Power Consumption3.5WExtinction Ratio4dB
Modulation FormatNRZCDRTX and RX
Transmit and Dispersion Penalty2.2dBPowerbudget1dB
Packaging TechnologyBOX PackagingFEC Function**Supported
Protocols100G Ethernet, 25G Ethernet, OTN OTU4 4I1-9D1FApplication100GBASE Ethernet, Telecom, 5G Network Mid/Backhaul

Please Note:
* 1310nm wavelength range include L0 1295.56nm(1294.53-1296.59nm), L1 1300.05nm(1299.02-1301.09nm), L2 1304.58nm(1303.54-1305.63nm), L3 1309.14nm(1308.09-1310.09nm)
** FEC in host is required to be turned on to increase the reliability of transmission.
