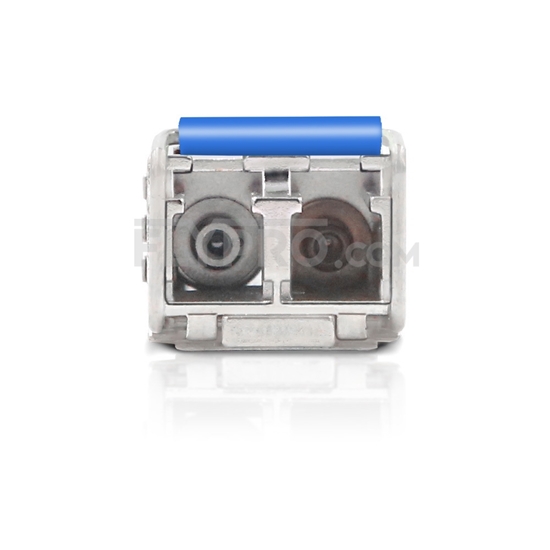

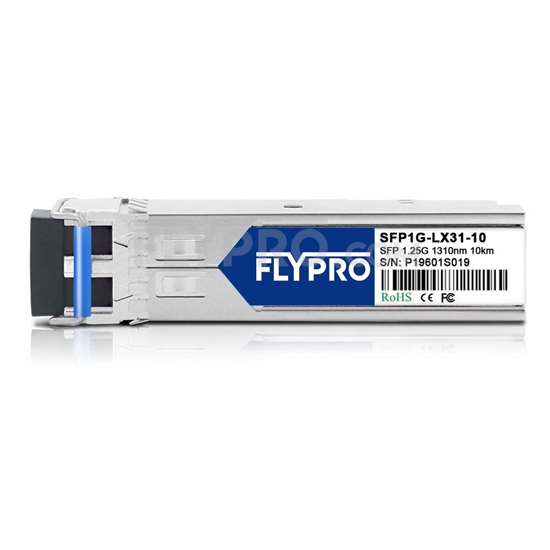

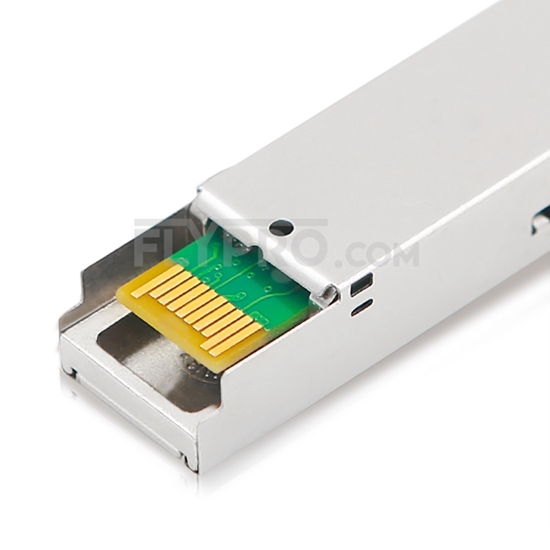

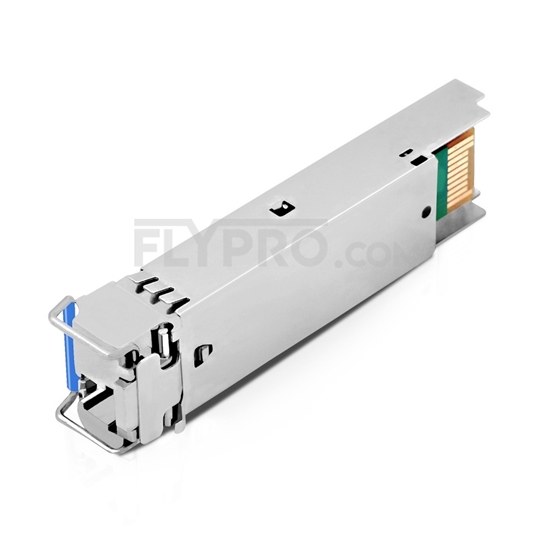

Picture of Brocade E1MG-LX-OM Compatible 1000BASE-LX SFP 1310nm 10km DOM Transceiver Module
Picture of Brocade E1MG-LX-OM Compatible 1000BASE-LX SFP 1310nm 10km DOM Transceiver Module
Picture of Brocade E1MG-LX-OM Compatible 1000BASE-LX SFP 1310nm 10km DOM Transceiver Module
Picture of Brocade E1MG-LX-OM Compatible 1000BASE-LX SFP 1310nm 10km DOM Transceiver Module
Picture of Brocade E1MG-LX-OM Compatible 1000BASE-LX SFP 1310nm 10km DOM Transceiver Module
Picture of Brocade E1MG-LX-OM Compatible 1000BASE-LX SFP 1310nm 10km DOM Transceiver Module
Picture of Brocade E1MG-LX-OM Compatible 1000BASE-LX SFP 1310nm 10km DOM Transceiver Module
Picture of Brocade E1MG-LX-OM Compatible 1000BASE-LX SFP 1310nm 10km DOM Transceiver Module
Picture of Brocade E1MG-LX-OM Compatible 1000BASE-LX SFP 1310nm 10km DOM Transceiver Module
Picture of Brocade E1MG-LX-OM Compatible 1000BASE-LX SFP 1310nm 10km DOM Transceiver Module
Picture of Brocade E1MG-LX-OM Compatible 1000BASE-LX SFP 1310nm 10km DOM Transceiver Module
Picture of Brocade E1MG-LX-OM Compatible 1000BASE-LX SFP 1310nm 10km DOM Transceiver Module

Brocade E1MG-LX-OM Compatible 1000BASE-LX SFP 1310nm 10km DOM Transceiver Module

PN: SFP1G-LX31-10
|
SKU: 236753
|
#236
US$5.99
30 Days Free Refund & Return
Lifetime Technical Support
Payment method
Inquire with us
Compatible:
Brocade
More +
Less -
Transceiver Type:
E1MG-TX
E1MGTX-A
E1MG-SX-OM
E1MG-SX2-1310
E1MG-SX2-1310
E1MG-LX-A
E1MG-LX-20
E1MG-EX-40
E1MG-EX1550-40
E1MG-LHA
XBR-000190
BCM5421XE
E1MG-SX-OM
E1MG-LX-OM
E1MG-LHA-OM
E1MG-LHA-OM-T
More +
Less -
US$5.99
Availability: In stock
Overview

Brocade E1MG-LX-OM Compatible 1000BASE-LX SFP Transceiver Module (MMF/SMF, 1310nm, 550m/10km, LC, DOM)

Product Details

Brocade CompatibleE1MG-LX-OMVendor NameFLYPRO
Form TypeSFPMax Data Rate1000Mbps
Wavelength1310nmMax Cable Distance10km
InterfaceLC duplexOptical ComponentsFP 1310nm
Cable TypeMMF*/SMF**DOM SupportYes
TX Power-9.5 ~ -3dBmReceiver Sensitivity< -23dBm
Commercial Temperature Range0 to 70°C (32 to 158°F)ProtocolsSFF-8472 MSA Compliant, IEEE 802.3ah-2004

Please Note:
* A mode-conditioning patch cord, as specified by the IEEE standard, is required regardless of the span length. Note how the mode conditioning patch cord for 62.5-μm fibers has a different specification from the mode-conditioning patch cord for 50-μm fibers.
** ITU-T G.652 SMF as specified by the IEEE 802.3z standard.
Platform Support
Brocade E1MG-LX-OM is supported on a wide range of Brocade equipment.
  • Brocade 6910
  • Brocade ADX
  • Brocade CES/CER/CER-RT
  • Brocade FCX
  • Brocade FSX Gen3
  • Brocade ICX 6430
  • Brocade ICX 6450
  • Brocade ICX 6610
  • Brocade ICX 6650
  • Brocade ICX 7250
  • Brocade ICX 7450
  • Brocade ICX 7750
  • Brocade XMR/MLX
  • VDX 6740
  • VDX 6940-144S
  • VDX 8770
