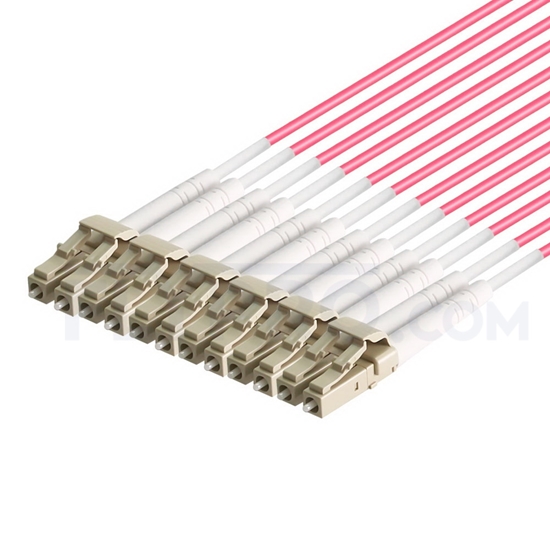

5m (16ft) MTP Female to 6 LC UPC Duplex 12 Fibers Type A LSZH OM4 (OM3) 50/125 Multimode Elite Breakout Cable, Magenta

Name: 5m (16ft) MTP Female to 6 LC UPC Duplex 12 Fibers Type A LSZH OM4 (OM3) 50/125 Multimode Elite Breakout Cable, Magenta
Brand: FLYPRO
SKU: 423397
Price: 56.99 USD
Availability: InStock
Rating: 0.0 (0 reviews)

PN: MT12FLCOM4FAL05

SKU: 423397

#2917

US$56.99

30 Days Free Refund & Return

Lifetime Technical Support

Payment method

Inquire with us

Length:: 5m; More +; Less -

US$56.99

Availability: In stock

Overview

MTP Female to LC UPC Duplex OM4 (OM3) Multimode Harness Cable

MTP Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP connectors and Corning Clearcurve fiber, it is optimized for 10/40/100G high-density data center applications.

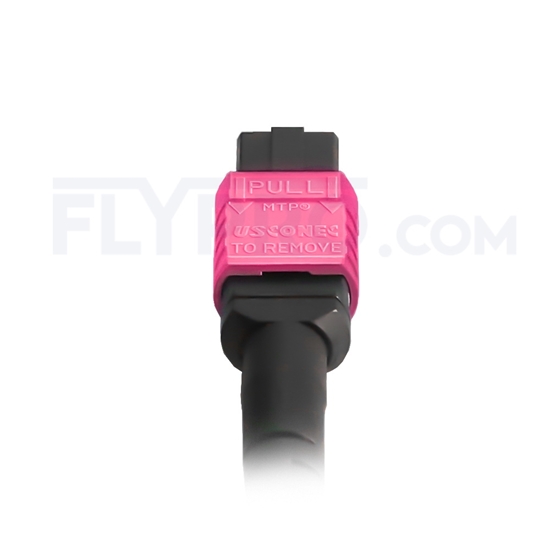

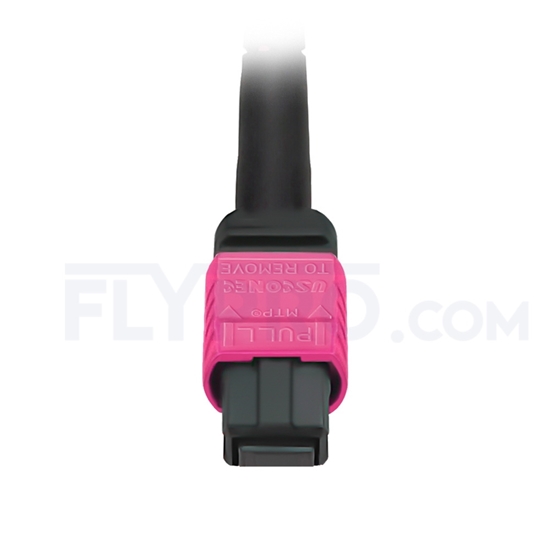

Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

Product Specifications

Connector A	MTP Female (US Conec)	Connector B	LC UPC Duplex
Fiber Mode	OM4 (OM3) 50/125μm	Wavelength	850/1300nm
40/100G Ethernet Distance	150m at 850nm	10G Ethernet Distance	400m at 850nm
Glass Fiber	Corning ClearCurve®	RoHS Compliancy Status	Compliant
MTP Connector IL	0.35dB Max (0.15dB Typ.)	LC Connector IL	≤0.2dB
MTP Connector RL	≥20dB	LC Connector RL	≥20dB
Attenuation at 850nm	≤2.3 dB/km	Attenuation at 1300nm	≤0.6 dB/km
Cable Jacket	LSZH	Fiber Count	12 Fibers
Jacket OD	3.0mm	Fan-Out Diameter	2.0mm
Installation Tensile Load	100 N	Long-Term Tensile Load	50 N
Operating Temperature	-10°C to +70°C	Storage Temperature	-40°C to +85°C
