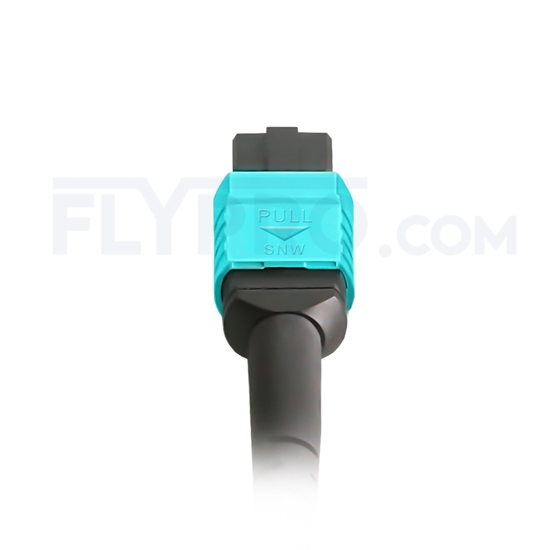

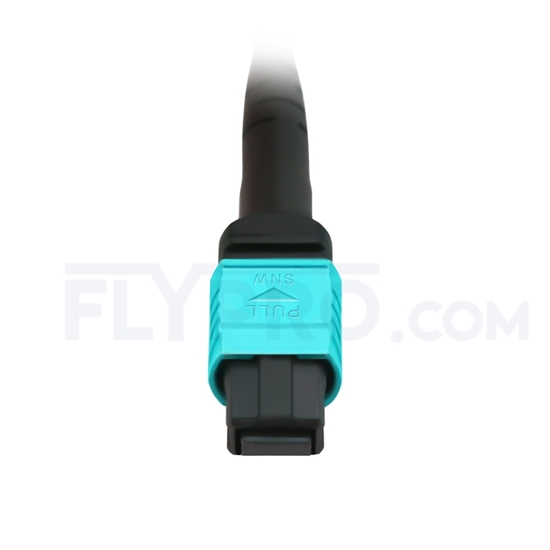

5m (16ft) MPO Female 12 Fibers Type A LSZH OM3 50/125 Multimode Elite Trunk Cable, Aqua

Name: 5m (16ft) MPO Female 12 Fibers Type A LSZH OM3 50/125 Multimode Elite Trunk Cable, Aqua
Brand: FLYPRO
SKU: 802384
Price: 31.99 USD
Availability: InStock
Rating: 0.0 (0 reviews)

PN: MP12FOM3FAL05

SKU: 802384

#5467

US$31.99

30 Days Free Refund & Return

Lifetime Technical Support

Payment method

Inquire with us

Length:: 5m; 10m; More +; Less -

US$31.99

Availability: In stock

Overview

MPO Female to MPO Female OM3 Multimode Trunk Cable

MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. It is optimized for 10/40/100G high-density data center applications.

Product Specifications

Connector A	MPO Female (pinless)	Connector B	MPO Female (pinless)
Fiber Mode	OM3 50/125 μm	Wavelength	850/1300 nm
40/100G Ethernet Distance	150 m at 850 nm	10G Ethernet Distance	400 m at 850 nm
Glass Fiber	Corning ClearCurve®	RoHS Compliancy Status	Compliant
Polish Type	UPC to UPC	Minimum Bend Radius	7.5 mm
Insertion Loss	0.35 dB Max. (0.15 dB Typ.)	Return Loss	≥ 20 dB
Attenuation at 850 nm	≤ 2.3 dB/km	Attenuation at 1300 nm	≤ 0.6 dB/km
Jacket OD	3.0 mm	Cable Jacket	LSZH
Installation Tensile Load	100 N	Long-Term Tensile Load	50 N
Storage Temperature	-40°C to 85°C	Operating Temperature	-10°C to 70°C

Quality Assurance

Excellent quality is the foundation of FLYPRO' s survival and development. Our operation team are experts with many years'experience in optical communication industry.Our manufacturers are first-class manufacturers in the industry.Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products,including our strict qualification of manufacturers,quality control process and production technology,and compliance with certification and safety standards.At present,our products meet the industry standards and mainstream quality certification,such as ISO 9001,CE,RoHS,FCC,etc.

Our Adavantages

SHort Lead time

Fast Delivery

Professional Service

Technical Support

Worry-Free Guarantee

Shopping Satisfactorily

Premium Quality

High Stability

Rigorous Industrial Product Testing

Communication and networks products require high stability and reliability.FLYPRO adopts leading product design,first-class raw materials and production technology to ensure the first-class quality of our products,so that your project can be used,installed stably and reliably
