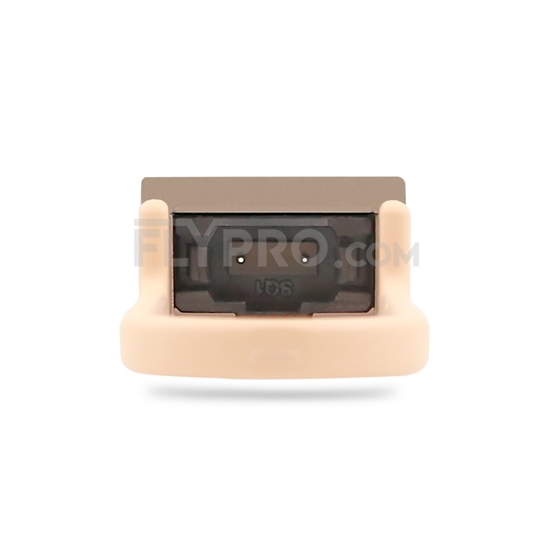

Picture of Cisco QSFP-40G-LR4-S Compatible 40GBASE-LR4 QSFP+ 1310nm 10km LC DOM Transceiver Module
Picture of Cisco QSFP-40G-LR4-S Compatible 40GBASE-LR4 QSFP+ 1310nm 10km LC DOM Transceiver Module
Picture of Cisco QSFP-40G-LR4-S Compatible 40GBASE-LR4 QSFP+ 1310nm 10km LC DOM Transceiver Module
Picture of Cisco QSFP-40G-LR4-S Compatible 40GBASE-LR4 QSFP+ 1310nm 10km LC DOM Transceiver Module
Picture of Cisco QSFP-40G-LR4-S Compatible 40GBASE-LR4 QSFP+ 1310nm 10km LC DOM Transceiver Module
Picture of Cisco QSFP-40G-LR4-S Compatible 40GBASE-LR4 QSFP+ 1310nm 10km LC DOM Transceiver Module
Picture of Cisco QSFP-40G-LR4-S Compatible 40GBASE-LR4 QSFP+ 1310nm 10km LC DOM Transceiver Module
Picture of Cisco QSFP-40G-LR4-S Compatible 40GBASE-LR4 QSFP+ 1310nm 10km LC DOM Transceiver Module
Picture of Cisco QSFP-40G-LR4-S Compatible 40GBASE-LR4 QSFP+ 1310nm 10km LC DOM Transceiver Module
Picture of Cisco QSFP-40G-LR4-S Compatible 40GBASE-LR4 QSFP+ 1310nm 10km LC DOM Transceiver Module
Picture of Cisco QSFP-40G-LR4-S Compatible 40GBASE-LR4 QSFP+ 1310nm 10km LC DOM Transceiver Module
Picture of Cisco QSFP-40G-LR4-S Compatible 40GBASE-LR4 QSFP+ 1310nm 10km LC DOM Transceiver Module

Cisco QSFP-40G-LR4-S Compatible 40GBASE-LR4 QSFP+ 1310nm 10km LC DOM Transceiver Module

PN: QSFP-40GPLR4-3110
|
SKU: 361536
|
#6112
US$198.99
30 Days Free Refund & Return
Lifetime Technical Support
Payment method
Inquire with us
Compatible:
Cisco
More +
Less -
Transceiver Type:
QSFP-40G-SR4
QSFP-40G-SR4-S
QSFP-40G-LR4
QSFP-40GE-LR4
QSFP-40G-LR4-S
QSFP-4X10G-LR-S
QSFP-40G-SR-BD
QSFP-40G-CSR4
QSFP-40G-PLRL4
QSFP-40G-UNIV
WSP-Q40GLR4L
QSFP-40G-ER4
More +
Less -
US$198.99
Availability: In stock
Overview

Cisco QSFP-40G-LR4-S Compatible 40GBASE-LR4 QSFP+ Transceiver Module (SMF, 1310nm, 10km, LC, DOM)

Product Details

Cisco CompatibleQSFP-40G-LR4-SVendor NameFLYPRO
Form TypeQSFP+Max Data Rate40Gbps
Wavelength1310nmMax Cable Distance*10km
ConnectorLC duplexTransimitter TypeDFB CWDM
Cable TypeSMFDDM/DOM SupportYes
CDRSupportedProtocolsOTN OTU3, 40G Ethernet, Infiniband, FiberChannel, SATA/SAS3, MSA Compliant
TX Power-7~2.3dBmReceiver Sensitivity<-13.7dBm
Commercial Temperature Range0 to 70°C (32 to 158°F)

Please Note:
* Minimum cabling distance is 2 meters for -LR4 and -ER4 according to the IEEE 802.3 standard.
Platform Support
Cisco QSFP-40G-LR4-S is supported on a wide range of Cisco equipment.
  • Cisco Catalyst C9500-24Y4C
  • Cisco NCS-5501
  • Cisco Nexus 2000 N2K- 2332TQ
  • Cisco Nexus 2000 N2K-2348TQ
  • Cisco Nexus 2000 N2K-2348UPQ
  • Cisco Nexus 2000 N2K-C2248PQ
  • Cisco Nexus 3000 N3K-3132Q
  • Cisco Nexus 3000 N3K-3172PQ
  • Cisco Nexus 3000 N3K-3172TQ
  • Cisco Nexus 3000 N3K-C3016Q
  • Cisco Nexus 3000 N3K-C3064-32T
  • Cisco Nexus 3000 N3K-C3064PQ
  • Cisco Nexus 3000 N3K-C3064PQ-10GE
  • Cisco Nexus 3000 N3K-C3064T
  • Cisco Nexus 3000 N3K-C3064X
  • Cisco Nexus 3000 N3K-C31128PQ-10GE
  • Cisco Nexus 3000 N3k-C3132Q-X
  • Cisco Nexus 3000 N3K-C3164Q
  • Cisco Nexus 5000 N55-M4Q
  • Cisco Nexus 5000 N5K-C56128P
  • Cisco Nexus 5000 N5K-C5672UP
  • Cisco Nexus 6000 N6004-96Q
  • Cisco Nexus 6000 N6004-B-24Q
  • Cisco Nexus 6000 N6K-C6001-64P
  • Cisco Nexus 6000 N6K-C6001-64T
  • Cisco Nexus 6000 N6K-C6004-M12Q
  • Cisco Nexus 7000 N77-F324FQ-25
  • Cisco Nexus 7000 N7K-F312FQ-25
  • Cisco Nexus 7000 N7K-M206FQ-23L
  • Cisco Nexus 9000 N9K-C92160YC-X
  • Cisco Nexus 9000 N9K-C9272Q
  • Cisco Nexus 9000 N9K-C93120TX
  • Cisco Nexus 9000 N9K-C9332PQ
  • Cisco Nexus 9000 N9K-C9336PQ
  • Cisco Nexus 9000 N9K-C9372PX
  • Cisco Nexus 9000 N9K-C9372PX-E
  • Cisco Nexus 9000 N9K-C9372TX
  • Cisco Nexus 9000 N9K-C9372TX-E
  • Cisco Nexus 9000 N9K-M12PQ
  • Cisco Nexus 9000 N9K-M6PQ
  • Cisco Nexus 9000 N9K-M6PQ-E
  • Cisco Nexus 9000 N9K-X9432C-S
  • Cisco Nexus 9000 N9K-X9432PQ
  • Cisco Nexus 9000 N9K-X9464PX
  • Cisco Nexus 9000 N9K-X9464TX
  • Cisco Nexus 9000 N9K-X9536PQ
  • Cisco Nexus 9000 N9K-X9564PX (uplinks)
  • Cisco Nexus 9000 N9K-X9564TX (uplinks)
  • Cisco Nexus 9000 N9K-X9636PQ
  • Cisco Nexus 9000 N9K-X9736PQ
  • Cisco Nexus 92304QC
  • Cisco Nexus 9300-EX Series 93180YC-EX
  • Cisco Nexus 9396PX
More +
