10m (33ft) MTP-MTP Patch Cable Female 24 Fibers Type A (TIA-568) Plenum (LSZH) OS2 9/125 Single Mode Elite, CPAK-10x10G-LR, Yellow

Name: 10m (33ft) MTP-MTP Patch Cable Female 24 Fibers Type A (TIA-568) Plenum (LSZH) OS2 9/125 Single Mode Elite, CPAK-10x10G-LR, Yellow
Brand: FLYPRO
SKU: 724254
Price: 191.99 USD
Availability: InStock
Rating: 0.0 (0 reviews)

PN: MT24FOSFAO10

SKU: 724254

#7432

US$191.99

30 Days Free Refund & Return

Lifetime Technical Support

Payment method

Inquire with us

Length:: 1m; 2m; 3m; 5m; 10m; More +; Less -

US$191.99

Availability: In stock

Overview

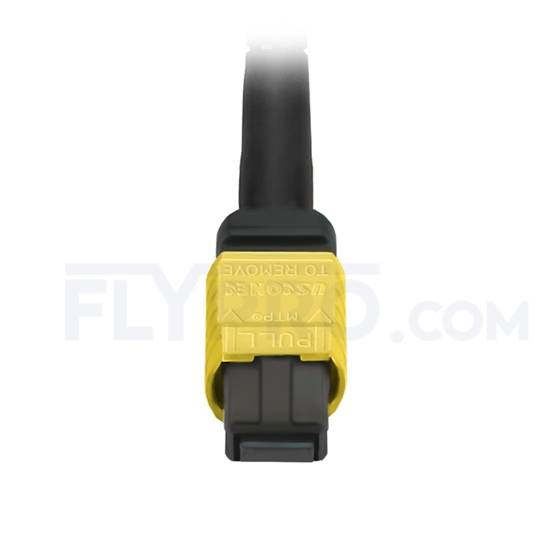

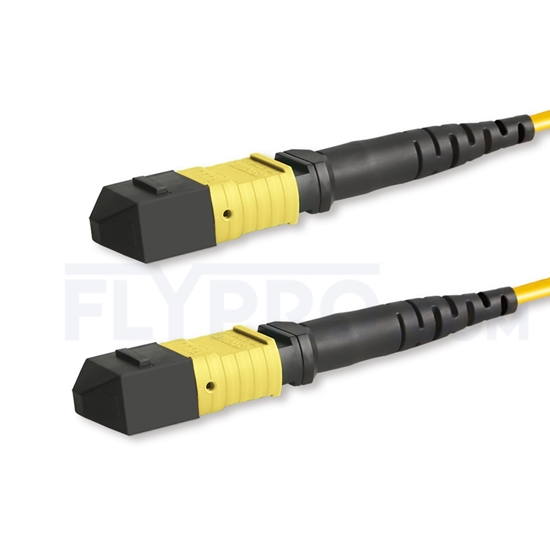

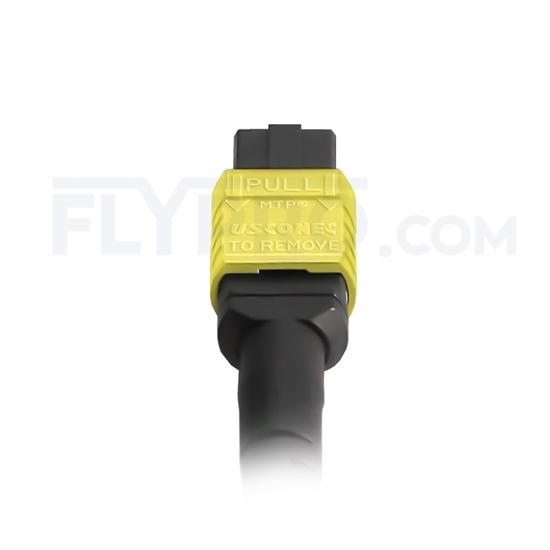

MTP Female to MTP Female OS2 Single Mode Trunk Cable

MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP Connectors and Corning SMF-28 ultra optical fiber, it is optimized for CPAK 10x10GBASE-LR optics direct connection and high-density data center applications.

Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

Product Specifications

Connector A	MTP Female (US Conec)	Connector B	MTP Female (US Conec)
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
Polish Type	APC to APC	Minimum Bend Radius	10mm
Insertion Loss	0.35dB Max (0.15dB Typ.)	Return Loss	≥60dB
Attenuation at 1310nm	≤0.32 dB/km	Attenuation at 1550nm	≤0.18 dB/km
Jacket OD	3.0mm	Cable Jacket	Plenum (LSZH)
Installation Tensile Load	100 N	Long-Term Tensile Load	50 N
Operating Temperature	-10°C to +70°C	Storage Temperature	-40°C to +85°C
