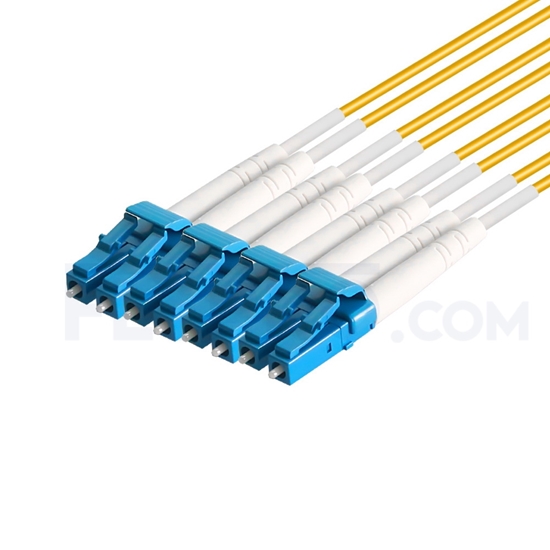

1m (3ft) MTP Female to 4 LC UPC Duplex 8 Fibers Type B LSZH OS2 9/125 Single Mode Elite Breakout Cable, Yellow

Name: 1m (3ft) MTP Female to 4 LC UPC Duplex 8 Fibers Type B LSZH OS2 9/125 Single Mode Elite Breakout Cable, Yellow
Brand: FLYPRO
SKU: 414272
Price: 37.99 USD
Availability: InStock
Rating: 0.0 (0 reviews)

PN: MT8FLCOSFBL01

SKU: 414272

#871

US$37.99

30 Days Free Refund & Return

Lifetime Technical Support

Payment method

Inquire with us

Length:: 1m; 2m; 3m; 5m; 10m; More +; Less -

US$37.99

Availability: In stock

Overview

MTP Female to LC UPC Duplex OS2 Single Mode Breakout Cable

MTP Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP connectors and Corning SMF-28 ultra optical fiber, it is optimized for 40G QSFP+ PLR4 to 10G SFP+ LR, 400G OSFP/QSFP-DD DR4 to 100G QSFP DR and 400G OSFP/QSFP-DD XDR4 to 100G QSFP FR optics direct connection and high-density data center applications.

Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

Product Specifications

Connector A	MTP Female (US Conec)	Connector B	LC UPC Duplex
Fiber Mode	OS2 SMF 9/125μm	Wavelength	1310/1550nm
MTP Connector IL	0.35dB Max (0.15dB Typ.)	LC Connector IL	≤0.2dB
MTP Connector RL	≥60dB	LC Connector RL	≥50dB
Attenuation at 1310nm	≤0.32 dB/km	Attenuation at 1550nm	≤0.18 dB/km
Jacket OD	3.0mm	Fan-Out Diameter	2.0mm
Installation Tensile Load	100 N	Long-Term Tensile Load	50 N
Storage Temperature	-40°C to +85°C	Operating Temperature	-10°C to +70°C
Cable Jacket	LSZH	Fiber Count	8 Fibers

Quality Assurance

Excellent quality is the foundation of FLYPRO' s survival and development. Our operation team are experts with many years'experience in optical communication industry.Our manufacturers are first-class manufacturers in the industry.Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products,including our strict qualification of manufacturers,quality control process and production technology,and compliance with certification and safety standards.At present,our products meet the industry standards and mainstream quality certification,such as ISO 9001,CE,RoHS,FCC,etc.

Our Adavantages

SHort Lead time

Fast Delivery

Professional Service

Technical Support

Worry-Free Guarantee

Shopping Satisfactorily

Premium Quality

High Stability

Rigorous Industrial Product Testing

Communication and networks products require high stability and reliability.FLYPRO adopts leading product design,first-class raw materials and production technology to ensure the first-class quality of our products,so that your project can be used,installed stably and reliably
