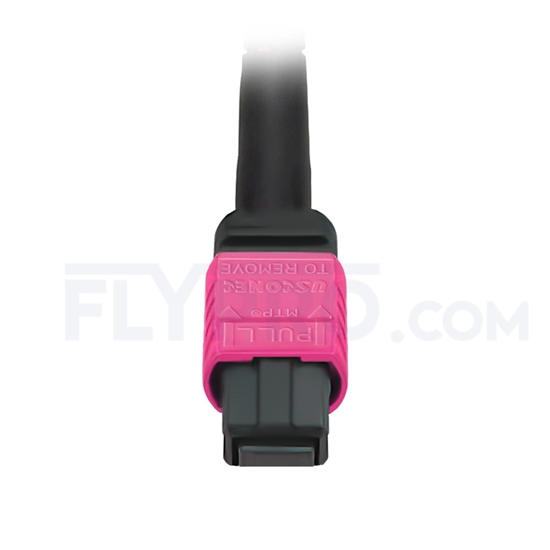

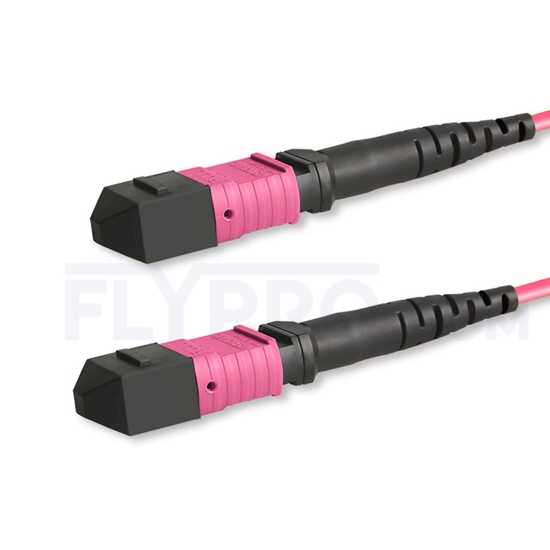

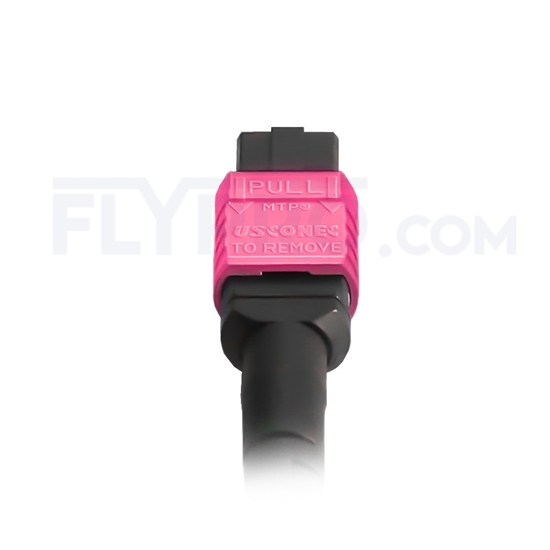

3m (10ft) MTP-MTP Patch Cable Female 12 Fibers Type B Plenum (OFNP) OM4 (OM3) 50/125 Multimode Elite, Magenta

Name: 3m (10ft) MTP-MTP Patch Cable Female 12 Fibers Type B Plenum (OFNP) OM4 (OM3) 50/125 Multimode Elite, Magenta
Brand: FLYPRO
SKU: 680206
Price: 52.99 USD
Availability: InStock
Rating: 0.0 (0 reviews)

PN: MT12FOM4FBO03

SKU: 680206

#9240

US$52.99

30 Days Free Refund & Return

Lifetime Technical Support

Payment method

Inquire with us

Length:: 1m; 1.5m; 2m; 3m; 5m; 10m; More +; Less -

US$52.99

Availability: In stock

Overview

MTP Female to MTP Female OM4 (OM3) Multimode Trunk Cable

MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP connectors and Corning Clearcurve fiber, it is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection and high-density data center applications.

Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

Product Specifications

Connector A	MTP Female (US Conec)	Connector B	MTP Female (US Conec)
Fiber Mode	OM4 (OM3) 50/125μm	Wavelength	850/1300nm
40/100G Ethernet Distance	150m at 850nm	10G Ethernet Distance	400m at 850nm
Glass Fiber	Corning ClearCurve®	RoHS Compliancy Status	Compliant
Polish Type	UPC to UPC	Minimum Bend Radius	7.5mm
Insertion Loss	0.35dB Max (0.15dB Typ.)	Return Loss	≥20dB
Attenuation at 850nm	≤2.3 dB/km	Attenuation at 1300nm	≤0.6 dB/km
Jacket OD	3.0mm	Cable Jacket	Plenum (OFNP)
Installation Tensile Load	66 N	Long-Term Tensile Load	50 N
Operating Temperature	-10°C to +70°C	Storage Temperature	-40°C to +85°C
