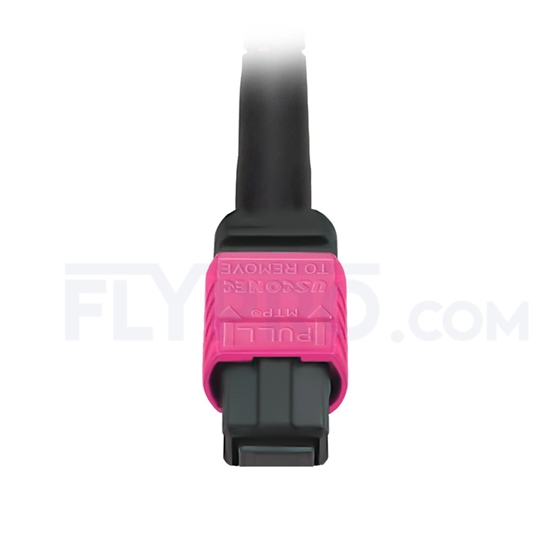

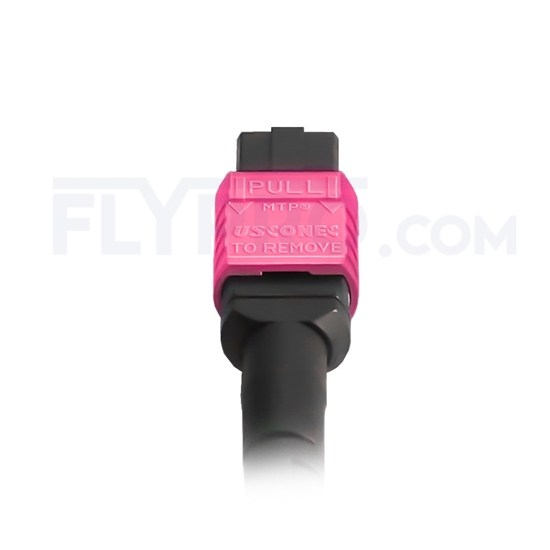

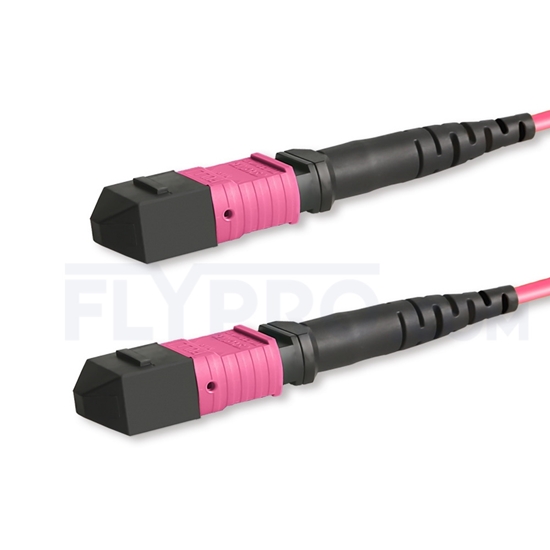

1m (3ft) MTP-MTP Patch Cable Female 24 Fibers Type A (TIA-568) Plenum (LSZH) OM4 (OM3) 50/125 Multimode Elite, 100GBASE-SR10 CXP/CFP/CPAK, Magenta

Name: 1m (3ft) MTP-MTP Patch Cable Female 24 Fibers Type A (TIA-568) Plenum (LSZH) OM4 (OM3) 50/125 Multimode Elite, 100GBASE-SR10 CXP/CFP/CPAK, Magenta
Brand: FLYPRO
SKU: 680411
Price: 95.99 USD
Availability: InStock
Rating: 0.0 (0 reviews)

PN: MT24FOM4FAO01

SKU: 680411

#9280

US$95.99

30 Days Free Refund & Return

Lifetime Technical Support

Payment method

Inquire with us

Length:: 1m; 2m; 3m; 5m; 10m; More +; Less -

US$95.99

Availability: In stock

Overview

MTP Female to MTP Female OM4 (OM3) Multimode Trunk Cable

MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP Connectors and Corning Clearcurve Fiber, it is optimized for 100GBASE-SR10 CXP/CFP/CPAK optics direct connection and high-density data center applications.

Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

Product Specifications

Connector A	MTP Female (US Conec)	Connector B	MTP Female (US Conec)
Fiber Mode	OM4 (OM3) 50/125μm	Wavelength	850/1300nm
40/100G Ethernet Distance	150m at 850nm	10G Ethernet Distance	400m at 850nm
Glass Fiber	Corning ClearCurve®	RoHS Compliancy Status	Compliant
Polish Type	UPC to UPC	Minimum Bend Radius	7.5mm
Insertion Loss	0.35dB Max (0.15dB Typ.)	Return Loss	≥20dB
Attenuation at 850nm	≤2.3 dB/km	Attenuation at 1300nm	≤0.6 dB/km
Jacket OD	3.0mm	Cable Jacket	Plenum (LSZH)
Installation Tensile Load	100 N	Long-Term Tensile Load	50 N
Operating Temperature	-10°C to +70°C	Storage Temperature	-40°C to +85°C

Quality Assurance

Excellent quality is the foundation of FLYPRO' s survival and development. Our operation team are experts with many years'experience in optical communication industry.Our manufacturers are first-class manufacturers in the industry.Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products,including our strict qualification of manufacturers,quality control process and production technology,and compliance with certification and safety standards.At present,our products meet the industry standards and mainstream quality certification,such as ISO 9001,CE,RoHS,FCC,etc.

Our Adavantages

SHort Lead time

Fast Delivery

Professional Service

Technical Support

Worry-Free Guarantee

Shopping Satisfactorily

Premium Quality

High Stability

Rigorous Industrial Product Testing

Communication and networks products require high stability and reliability.FLYPRO adopts leading product design,first-class raw materials and production technology to ensure the first-class quality of our products,so that your project can be used,installed stably and reliably
